For the case of Autonomous QTouch, only the TOUCH_STATE_NULL and TOUCH_STATE_INIT
states apply in the State diagram.
?
?
The touch_at_sensor_init event causes a transition from TOUCH_STATE_NULL to
TOUCH_STATE_INIT.
The touch_deinit event causes a transition from TOUCH_STATE_INIT to
TOUCH_STATE_NULL.
QTouch Library for UC3L State Diagram
touch_xx_sensor_config
touch_xx_sensor_get_config
touch_xx_get_global_param
touch_xx_get_libinfo
touch_qm_channel_udpate_burstlen
touch_qt_sensor_disable
touch_qt_sensor_reenable
touch_xx_sensor_update_config
touch_xx_sensor_get_config
xx = qm, qt
Sensor state machine for QMatrix
and QTouch GroupA/B
touch_xx_sensors_init
TOUCH_
STATE_INIT
touch_qm_channel_udpate_burstlen
touch_qt_sensor_disable
touch_qt_sensor_reenable
touch_xx_update_global_param
touch_xx_get_global_param
touch_xx_get_libinfo
TOUCH_
STATE_
CALIBRATE
touch_deinit touch_xx_sensors_calibrate
touch_deinit
touch_xx_sensors_calibrate
TOUCH_
STATE_ NULL
touch_deinit
TOUCH_
STATE_
READY
measure_complete_callback
(provide measured data and
touch status)
touch_xx_sensors_start_acquisition
touch_deinit
TOUCH_
STATE_BUSY
touch_xx_get_libinfo

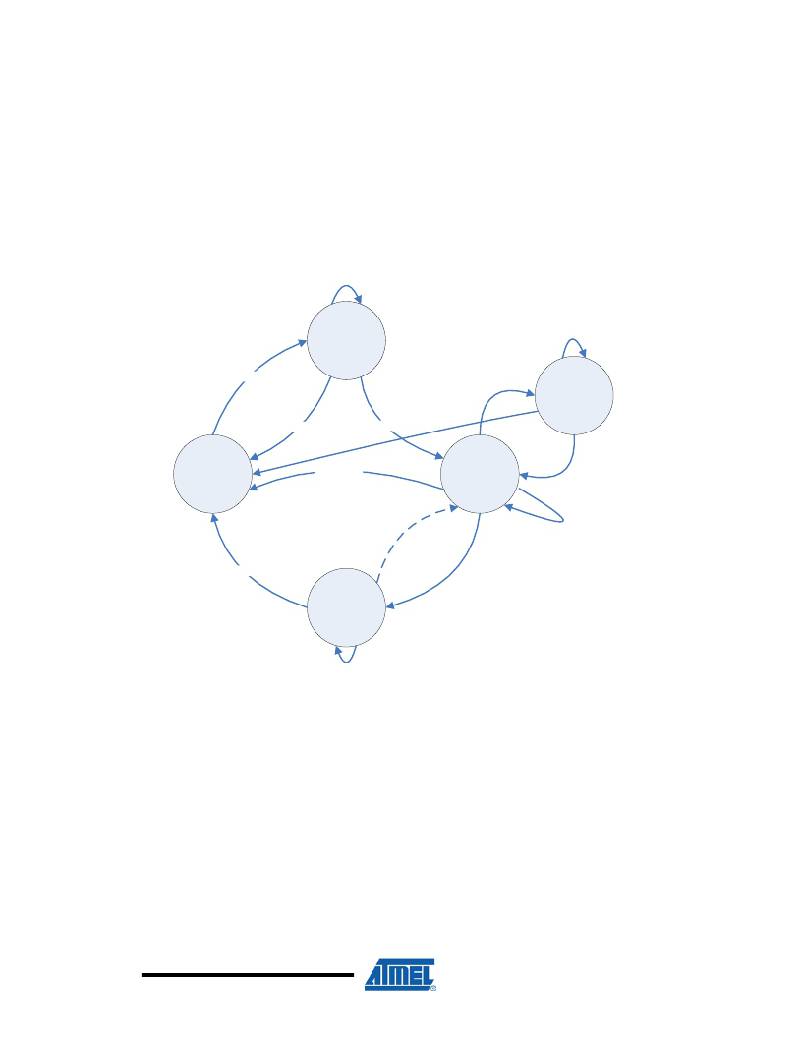

Figure 36 State Diagram of QTouch Library for UC3L
6.3.7 QMatrix method sensor operation for UC3L
touch_xx_sensor_update_config
touch_xx_sensor_get_config
touch_xx_update_global_param
touch_xx_get_global_param
touch_xx_get_sensor_delta
touch_xx_get_libinfo
6.3.7.1
QMatrix method pin selection for UC3L
Please refer AT32UC3L datasheet Table 28-2 Pin Selection Guide and Table 3-1 GPIO
Controller Function multiplexing, for mapping between the QMatrix method pin name and the
GPIO pin. It is possible to configure a maximum of 17 X Lines and 8 Y-Yk pairs. The X Line X8
(PA16) cannot be used for the QMatrix method as it is required to use this pin for the ACREFN
function.
The CAT module provides an option to enable a nominal output resistance of 1kOhm on specific
CAT module pins during the burst phase. The Table below captures the different QMatrix method
pin wherein a Resistive Drive can be optionally enabled. The rows marked with Grey indicate
that Resistive Drive option is not available on that pin. By carefully choosing the QMatrix method
117
